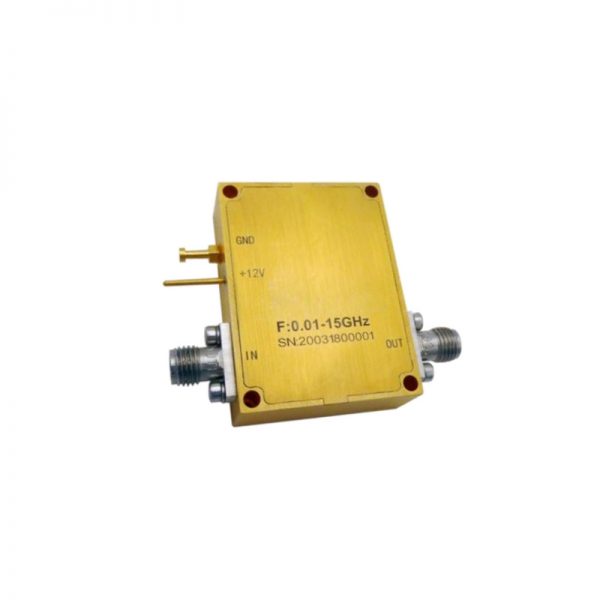

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 15GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 15GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 32 dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 320 mA
• 50 Ohm Matched Input / Output

SKU: OLNA200011500A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32 dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 320 mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

014-OLNA200011500A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

15

Gain (dB)

32

NF (dB)

2.5

P1dB (dBm)

24

IP3 (dBm)

32

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

320

Connection Type

SMA
