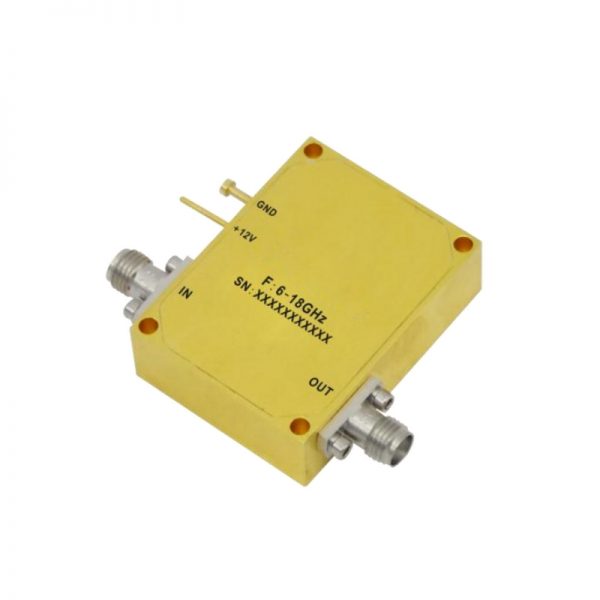

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 34dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 34dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 34dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +28dB m Typical
• Supply Voltage: +12V @ 680mA
• 50 Ohm Matched

SKU: OLNA206001800B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 34dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +28dB m Typical
• Supply Voltage: +12V @ 680mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

026-OLNA206001800B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

34

NF (dB)

2.5

P1dB (dBm)

25

IP3 (dBm)

38

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

680

Connection Type

SMA
