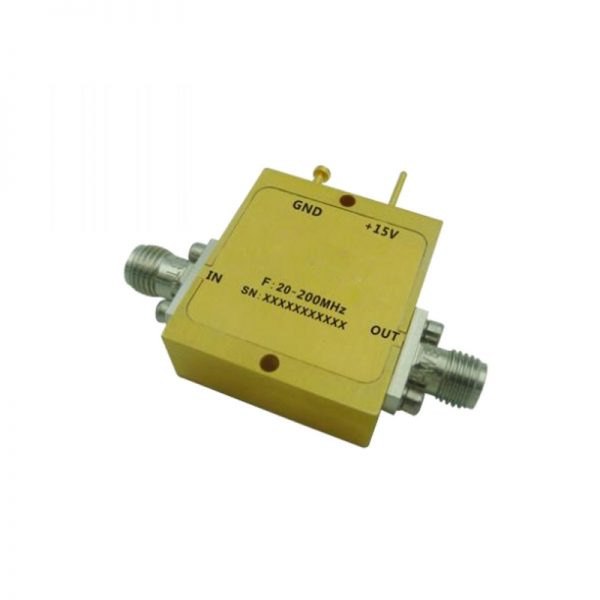

Ultra Wide Band Low Noise Amplifier From 0.02GHz to 0.2GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.02GHz to 0.2GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 32 dB Typical
• Noise Figure: 2.5 dB Typical
• P1dB Output Power: +13dBmTypical
• Supply Voltage: +15V @ 50mA
• 50 Ohm Matched

SKU: OLNA200020020A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32 dB Typical
• Noise Figure: 2.5 dB Typical
• P1dB Output Power: +13dBmTypical
• Supply Voltage: +15V @ 50mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

169-OLNA200020020A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.02

Max. Pass Band Frequency (GHz)

0.2

Gain (dB)

32

NF (dB)

2.5

P1dB (dBm)

13

IP3 (dBm)

27

VSWR

1.4

"Voltage (VDC)"

15

"Current (mA)"

50

Connection Type

SMA
