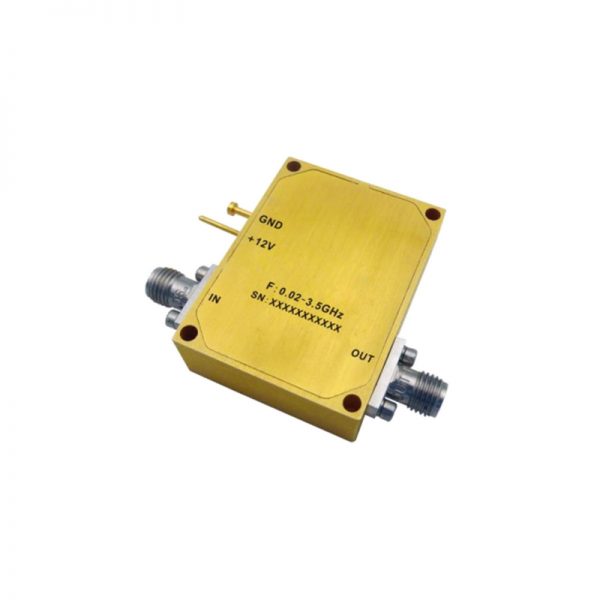

Ultra Wide Band Low Noise Amplifier From 0.02GHz to 3.5GHz With a Nominal 32dB Gain NF 1.3dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 0.02GHz to 3.5GHz With a Nominal 32dB Gain NF 1.3dB SMA-Female Connectors

0 out of 5

• Gain: 32dB Typical
• Noise Figure: 1.3dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V @ 120mA

SKU: OLNA100020350A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dB Typical
• Noise Figure: 1.3dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V @ 120mA



Data Sheet ( Download Datasheet PDF )

183-OLNA100020350A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.02

Max. Pass Band Frequency (GHz)

3.5

Gain (dB)

32

NF (dB)

1.3

P1dB (dBm)

22

IP3 (dBm)

28

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

120

Connection Type

SMA-Female
