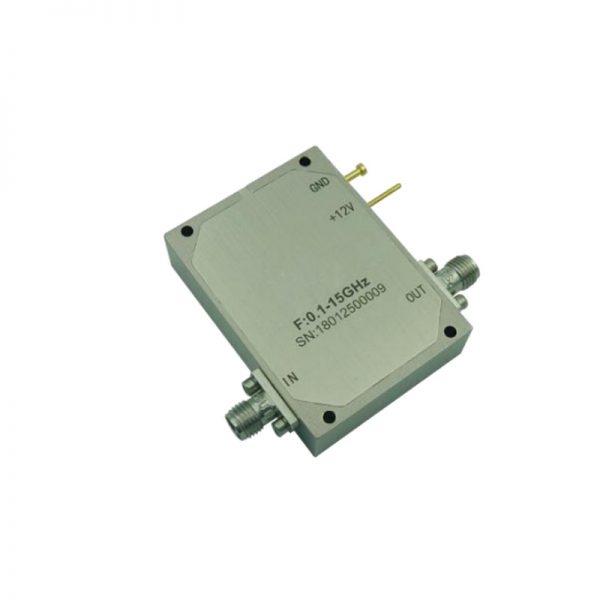

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 15GHz With a Nominal 45dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 15GHz With a Nominal 45dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain:45dB Typical
• Noise Figure:2.2dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V @ 300mA
• 50 Ohm Matched Input / Output
• Size:1.379” x1.891” x0.473”

SKU: OLNA300101500A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:45dB Typical
• Noise Figure:2.2dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V @ 300mA
• 50 Ohm Matched Input / Output
• Size:1.379” x1.891” x0.473”



Data Sheet ( Download Datasheet PDF )

162-OLNA300101500A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

15

Gain (dB)

45

NF (dB)

2

P1dB (dBm)

21

IP3 (dBm)

30

VSWR

1.6

"Voltage (VDC)"

15

"Current (mA)"

300

Connection Type

SMA
