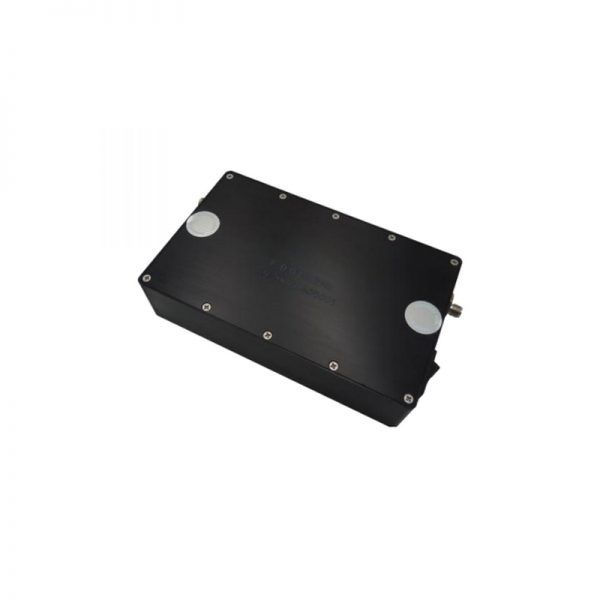

Ultra Wide Band Low Noise Amplifier From 0.03GHz to 3GHz With a Nominal 35dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.03GHz to 3GHz With a Nominal 35dB Gain NF 2.5dB SMA Connectors

• Gain: 36dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +15V @ 200mA
• 50 Ohm Matched

SKU: OLNA200030300S Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +15V @ 200mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

220-OLNA200030300S



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.03

Max. Pass Band Frequency (GHz)

3

Gain (dB)

35

NF (dB)

2.5

P1dB (dBm)

20

IP3 (dBm)

33

VSWR

2

"Voltage (VDC)"

15

"Current (mA)"

200

Connection Type

SMA
