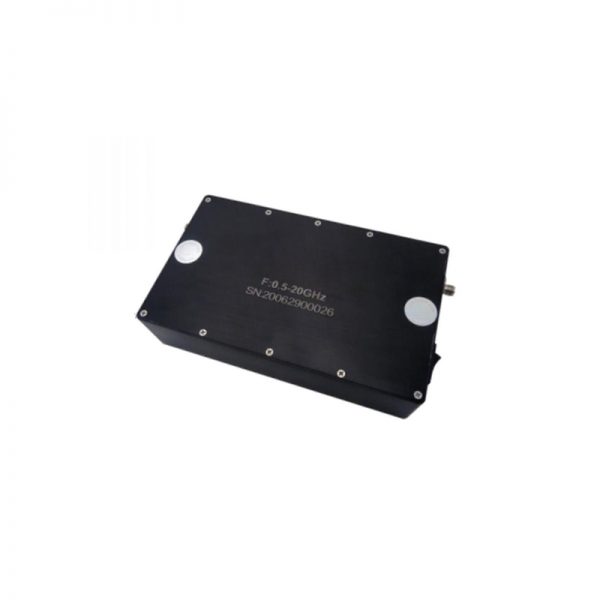

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 20GHz With a Nominal 58dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 20GHz With a Nominal 58dB Gain NF 3.5dB SMA Connectors

• Gain: 60dB Typical
• Noise Figure:2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +15V @ 560mA
• 50 Ohm Matched

SKU: OLNA300502000S Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 60dB Typical
• Noise Figure:2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +15V @ 560mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

221-OLNA300502000S



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

20

Gain (dB)

58

NF (dB)

3.5

P1dB (dBm)

18

IP3 (dBm)

25

VSWR

2

"Voltage (VDC)"

15

"Current (mA)"

560

Connection Type

SMA
