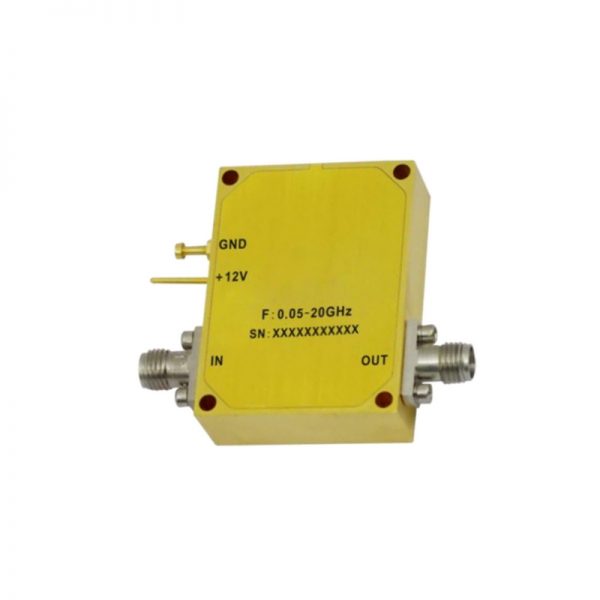

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 20GHz With a Nominal 28dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 20GHz With a Nominal 28dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 28dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +23dBm Typical
• Supply Voltage: +12V

SKU: OLNA200052000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 28dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +23dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

052-OLNA200052000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.05

Max. Pass Band Frequency (GHz)

20

Gain (dB)

28

NF (dB)

2

P1dB (dBm)

23

IP3 (dBm)

33

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

210

Connection Type

SMA
