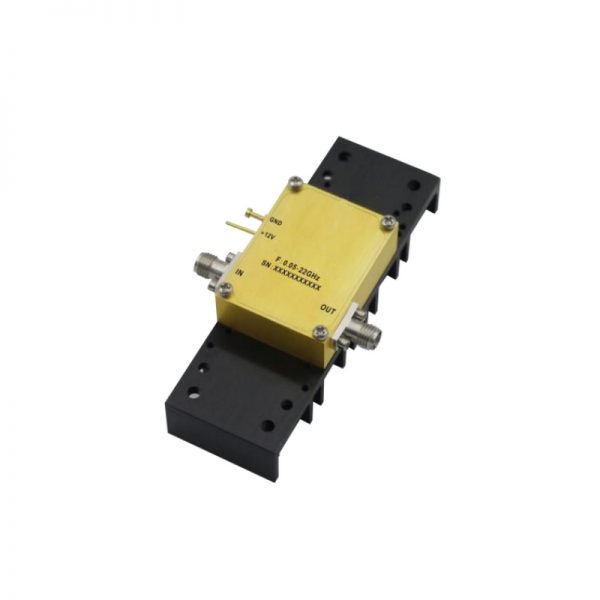

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 22GHz With a Nominal 29dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 22GHz With a Nominal 29dB Gain NF 1.8dB SMA Connectors

• Gain: 28dB Typical
• Functional Bandwidth: 0.05GHz to 22GHz
• Noise Figure: 1.8dB Typical
• P1dB Output Power: 16dBm Typical
• Supply Voltage: +12V @ 130mA
• 50 Ohm Matched

SKU: OLNA201002000C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 28dB Typical
• Functional Bandwidth: 0.05GHz to 22GHz
• Noise Figure: 1.8dB Typical
• P1dB Output Power: 16dBm Typical
• Supply Voltage: +12V @ 130mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

176-OLNA201002000C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.05

Max. Pass Band Frequency (GHz)

22

Gain (dB)

29

NF (dB)

1.8

P1dB (dBm)

17

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

130

Connection Type

SMA
