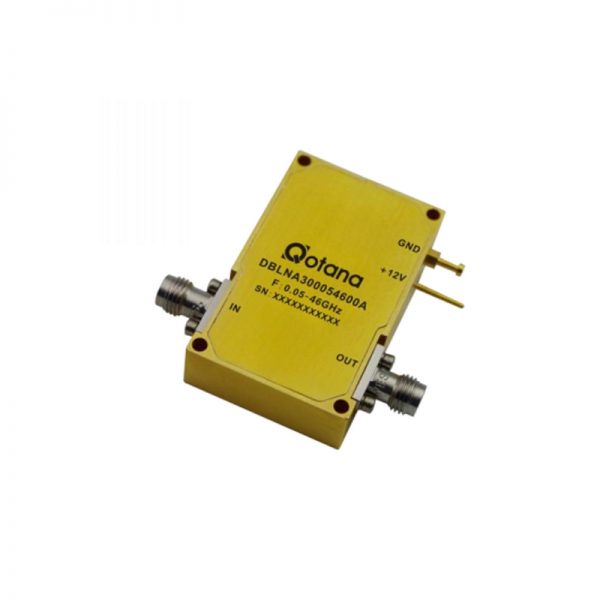

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 46GHz With a Nominal 25dB Gain NF 3dB 2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 46GHz With a Nominal 25dB Gain NF 3dB 2.4mm Connectors

0 out of 5

• Gain: 29dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V @ 355mA
• 50 Ohm Matched Input / Output
• Size: 1.18” x 1.89” x0.39”

SKU: OLNA300054600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 29dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V @ 355mA
• 50 Ohm Matched Input / Output
• Size: 1.18” x 1.89” x0.39”



Data Sheet ( Download Datasheet PDF )

103-OLNA300054600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.05

Max. Pass Band Frequency (GHz)

46

Gain (dB)

25

NF (dB)

3

P1dB (dBm)

18

IP3 (dBm)

28

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

355

Connection Type

2.4mm
