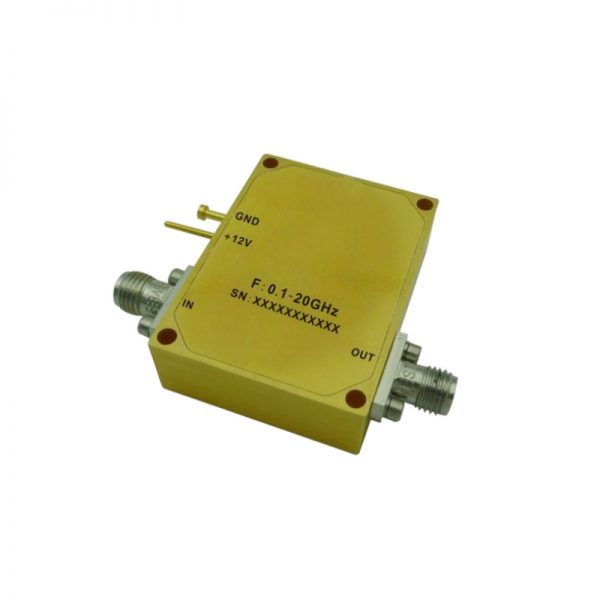

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 20GHz With a Nominal 30dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 20GHz With a Nominal 30dB Gain NF 3.5dB SMA Connectors

0 out of 5

• Gain: 28dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +16dBmTypical
• Supply Voltage: +12V @ 210mA
• 50 Ohm Matched

SKU: OLNA300101000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 28dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +16dBmTypical
• Supply Voltage: +12V @ 210mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

002-OLNA300101000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

20

Gain (dB)

30

NF (dB)

3.5

P1dB (dBm)

22

IP3 (dBm)

28

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

210

Connection Type

SMA
