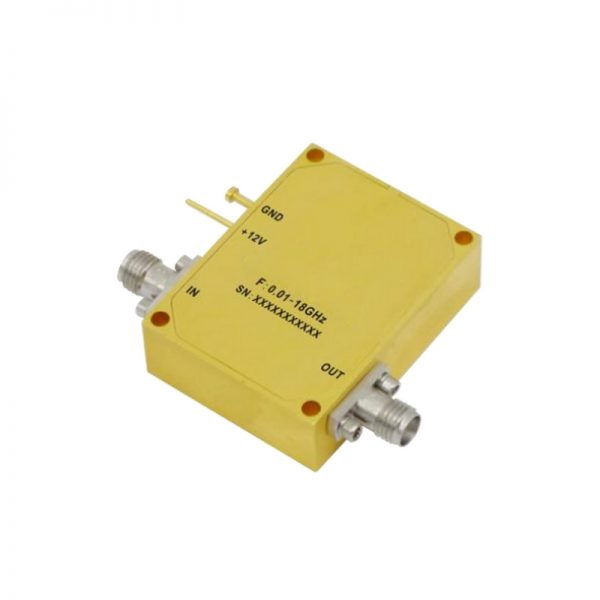

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 18GHz With a Nominal 27dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 18GHz With a Nominal 27dB Gain NF 3dB SMA Connectors

0 out of 5

• Gain: 31dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 320mA
• 50 Ohm Matched Input / Output

SKU: OLNA300011800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 31dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 320mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

022-OLNA300011800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

18

Gain (dB)

27

NF (dB)

3

P1dB (dBm)

22

IP3 (dBm)

28

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

320

Connection Type

SMA
