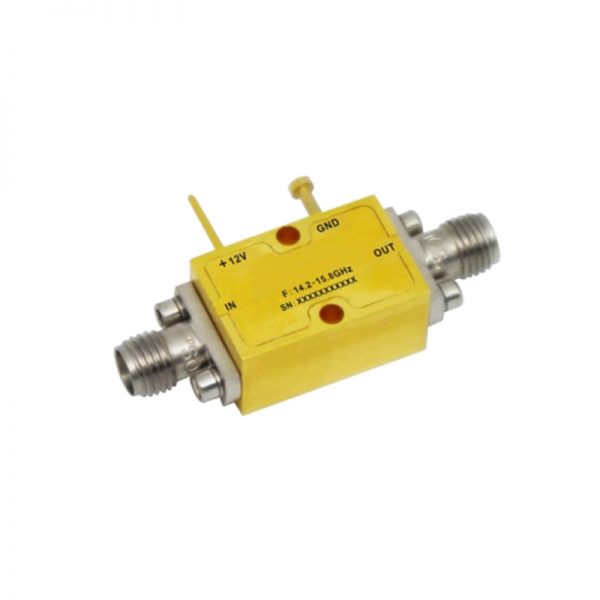

Ultra Wide Band Low Noise Amplifier From 14.2GHz to 15.8GHz With a Nominal 35dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 14.2GHz to 15.8GHz With a Nominal 35dB Gain NF 2dB SMA Connectors

• Gain: 35dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: + 15dBm Typical
• Supply Voltage: + 12 V @ 160mA
• 50 Ohm Matched Input / Output
• Size: 0.79 ” x 0.51 ” x 0.39 ”

SKU: OLNA214201580A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: + 15dBm Typical
• Supply Voltage: + 12 V @ 160mA
• 50 Ohm Matched Input / Output
• Size: 0.79 ” x 0.51 ” x 0.39 ”



Data Sheet ( Download Datasheet PDF )

017-OLNA214201580A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

14.2

Max. Pass Band Frequency (GHz)

15.8

Gain (dB)

35

NF (dB)

2

P1dB (dBm)

15

IP3 (dBm)

26

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

150

Connection Type

SMA
