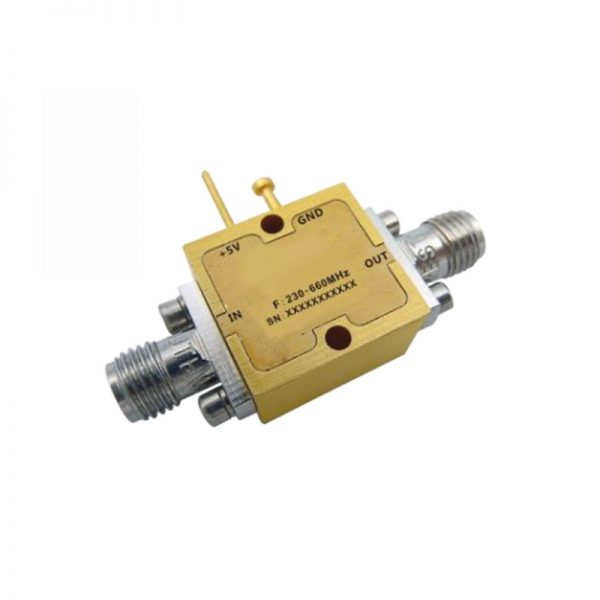

Ultra Wide Band Low Noise Amplifier From 0.23GHz to 0.66GHz With a Nominal 23dB Gain NF 0.6dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.23GHz to 0.66GHz With a Nominal 23dB Gain NF 0.6dB SMA Connectors

• Gain: 26dB Typical
• Noise Figure: 0.6dB Typical
• P1dB Output Power: +23dBm
• Supply Voltage: +5V

SKU: OLNA100230066A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 26dB Typical
• Noise Figure: 0.6dB Typical
• P1dB Output Power: +23dBm
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

087-OLNA100230066A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.23

Max. Pass Band Frequency (GHz)

0.66

Gain (dB)

23

NF (dB)

0.6

P1dB (dBm)

21

IP3 (dBm)

37

VSWR

1.6

"Voltage (VDC)"

5

"Current (mA)"

150

Connection Type

SMA
