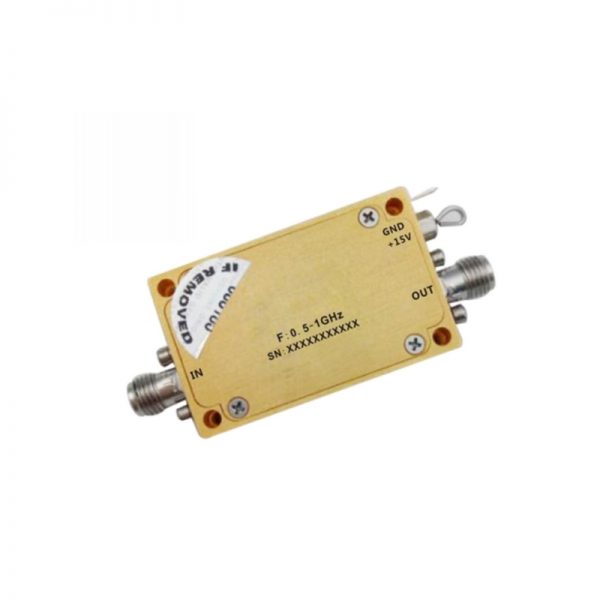

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 1GHz With a Nominal 41dB Gain NF 0.95dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 1GHz With a Nominal 41dB Gain NF 0.95dB SMA Connectors

0 out of 5

• Gain: 45dB Typical
• Noise Figure: 0.6dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +15V /160mA
• 50 Ohm Matched

SKU: OLNA100500100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure: 0.6dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +15V /160mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

164-OLNA100500100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

1

Gain (dB)

41

NF (dB)

0.95

P1dB (dBm)

19.5

IP3 (dBm)

36

VSWR

2

"Voltage (VDC)"

15

"Current (mA)"

160

Connection Type

SMA
