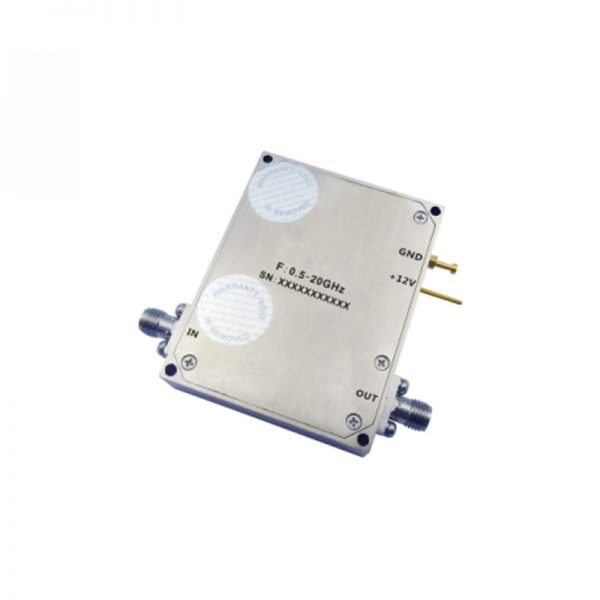

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 20GHz With a Nominal 59dB Gain NF 2.5dB SMA-F Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 20GHz With a Nominal 59dB Gain NF 2.5dB SMA-F Connectors

• Gain: 60dB Typical
• Noise Figure:2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 560mA
• 50 Ohm Matched

SKU: OLNA300101800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 60dB Typical
• Noise Figure:2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 560mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

203-OLNA300101800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

20

Gain (dB)

59

NF (dB)

2.5

P1dB (dBm)

23

IP3 (dBm)

28

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

560

Connection Type

SMA-F
