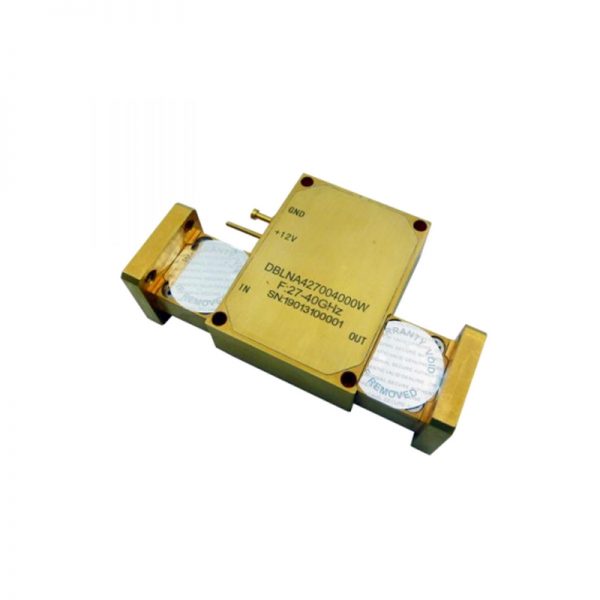

Ultra Wide Band Low Noise Amplifier From 27GHz to 40GHz With a Nominal 35dB Gain NF 3dB WR28 Connectors

Ultra Wide Band Low Noise Amplifier From 27GHz to 40GHz With a Nominal 35dB Gain NF 3dB WR28 Connectors

0 out of 5

• Gain: 35dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +12V @ 110mA
• 50 Ohm Matched Input / Output

SKU: OLNA427004000W Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +12V @ 110mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

189-OLNA427004000W



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

27

Max. Pass Band Frequency (GHz)

40

Gain (dB)

35

NF (dB)

3

P1dB (dBm)

10

IP3 (dBm)

20

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

110

Connection Type

WR28
