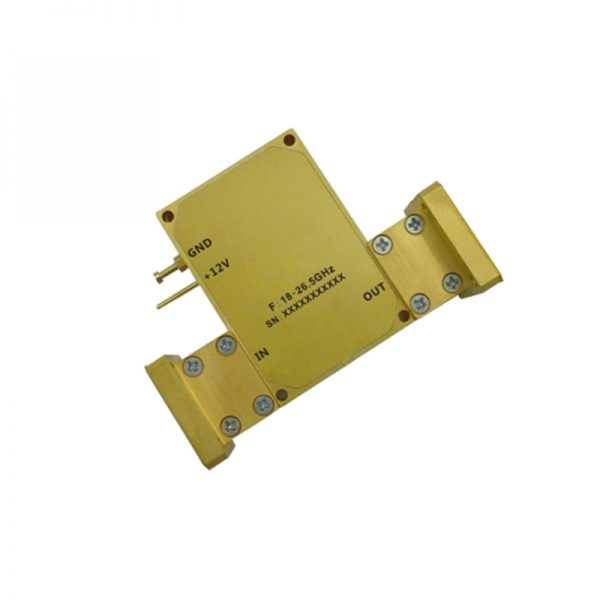

Ultra Wide Band Low Noise Amplifier From 18GHz to 26.5GHz With a Nominal 50dB Gain NF 3.5dB WR42 Connectors

Ultra Wide Band Low Noise Amplifier From 18GHz to 26.5GHz With a Nominal 50dB Gain NF 3.5dB WR42 Connectors

• Gain: 60dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dB m Typical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA218002650A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 60dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dB m Typical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

167-OLNA218002650A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

18

Max. Pass Band Frequency (GHz)

26.5

Gain (dB)

50

NF (dB)

3.5

P1dB (dBm)

12

IP3 (dBm)

26

VSWR

2.3

"Voltage (VDC)"

12

"Current (mA)"

260

Connection Type

WR42
