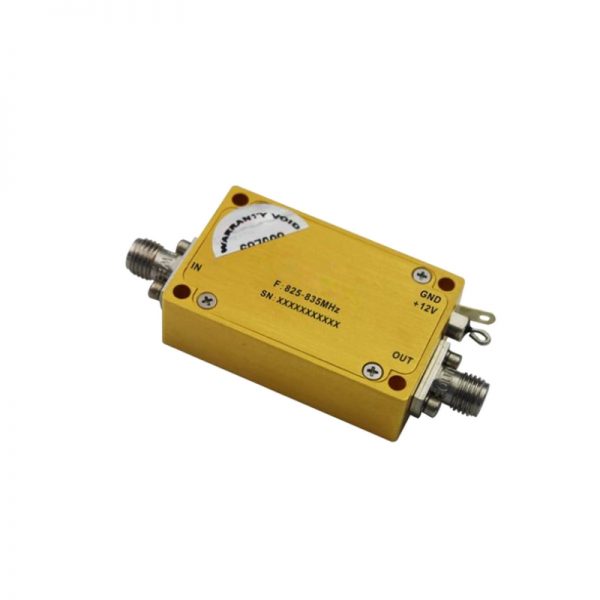

Ultra Wide Band Low Noise Amplifier From 0.825GHz to 0.835GHz With a Nominal 41dB Gain NF 1dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.825GHz to 0.835GHz With a Nominal 41dB Gain NF 1dB SMA Connectors

0 out of 5

• Gain: 41dB Typical
• Noise Figure: 1.0 Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12VDC
• 50 Ohm Matched Input / Output

SKU: OLNA100830084A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 41dB Typical
• Noise Figure: 1.0 Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12VDC
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

027-OLNA100830084A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.825

Max. Pass Band Frequency (GHz)

0.835

Gain (dB)

41

NF (dB)

1

P1dB (dBm)

22

IP3 (dBm)

34

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

230

Connection Type

SMA
