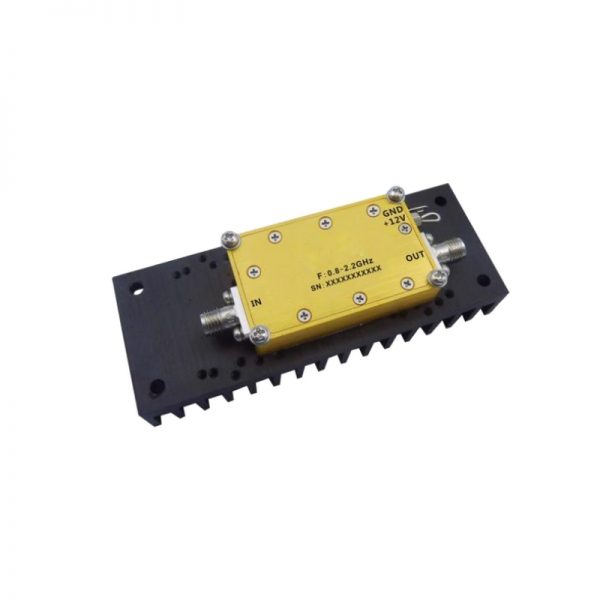

Ultra Wide Band Low Noise Amplifier From 0.8GHz to 2.2GHz With a Nominal 49dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.8GHz to 2.2GHz With a Nominal 49dB Gain NF 1.5dB SMA Connectors

0 out of 5

• Gain:49dB Typical
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +12V @ 240mA
• 50 Ohm Matched

SKU: OLNA100800220A Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain:49dB Typical
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +12V @ 240mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

031-OLNA100800220A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.8

Max. Pass Band Frequency (GHz)

2.2

Gain (dB)

49

NF (dB)

1.5

P1dB (dBm)

19

IP3 (dBm)

29

VSWR

1.7

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

SMA
