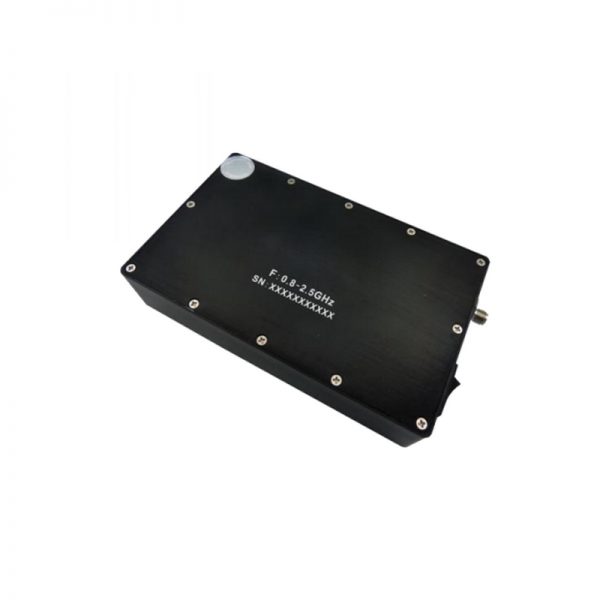

Ultra Wide Band Low Noise Amplifier From 0.8GHz to 2.5GHz With a Nominal 60dB Gain NF 0.8dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 0.8GHz to 2.5GHz With a Nominal 60dB Gain NF 0.8dB SMA-Female Connectors

0 out of 5

• Gain: 60dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched Input / Output

SKU: OLNA100800250S Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 60dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

187-OLNA100800250S



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.8

Max. Pass Band Frequency (GHz)

2.5

Gain (dB)

60

NF (dB)

0.8

P1dB (dBm)

19

IP3 (dBm)

30

VSWR

1.8

"Voltage (VDC)"

15

"Current (mA)"

210

Connection Type

SMA-Female
