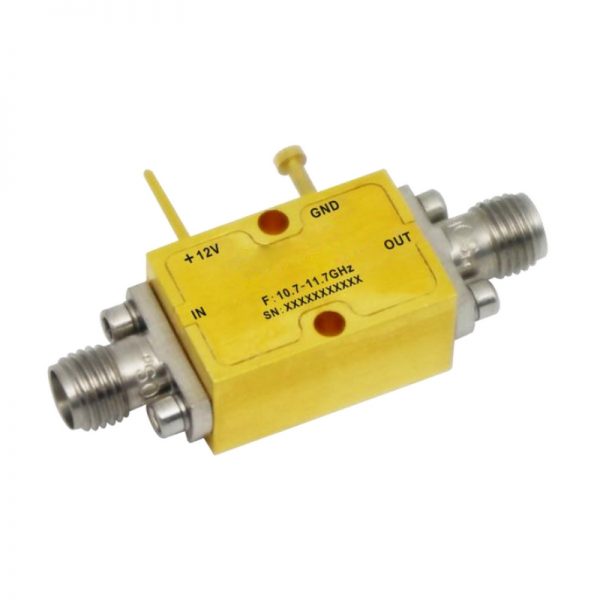

Ultra Wide Band Low Noise Amplifier From 10.7GHz to 11.7GHz With a Nominal 35dB Gain NF 1.6dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 10.7GHz to 11.7GHz With a Nominal 35dB Gain NF 1.6dB SMA Connectors

0 out of 5

• Gain: 35dB Typical
• Noise Figure: 1.7dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched Input / Output
• Size: 0.79” x 0.51” x0.39”

SKU: OLNA210701170A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 1.7dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched Input / Output
• Size: 0.79” x 0.51” x0.39”



Data Sheet ( Download Datasheet PDF )

008-OLNA210701170A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

10.7

Max. Pass Band Frequency (GHz)

11.7

Gain (dB)

35

NF (dB)

1.6

P1dB (dBm)

15

IP3 (dBm)

25

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

160

Connection Type

SMA
