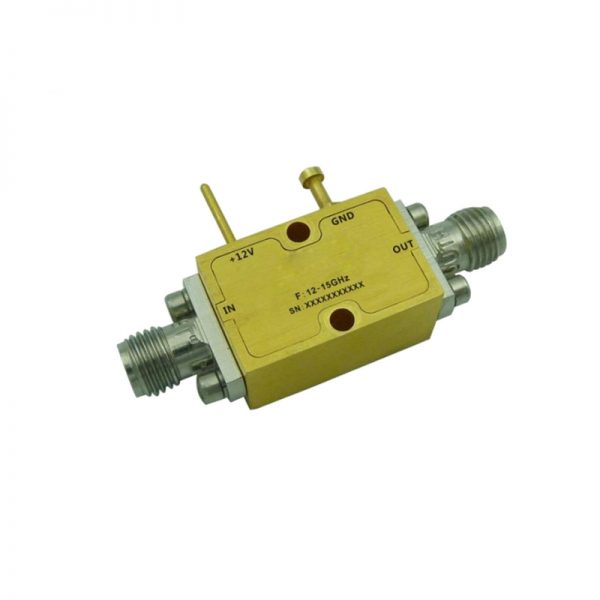

Ultra Wide Band Low Noise Amplifier From 12GHz to 15GHz With a Nominal 32dB Gain NF 1.7dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 12GHz to 15GHz With a Nominal 32dB Gain NF 1.7dB SMA Connectors

0 out of 5

• Functional Bandwidth : 6GHz to 18GHz
• Gain: 32dB typical
• Noise Figure: 1.7dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched

SKU: OLNA212001500A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Functional Bandwidth : 6GHz to 18GHz
• Gain: 32dB typical
• Noise Figure: 1.7dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

015-OLNA212001500A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

12

Max. Pass Band Frequency (GHz)

15

Gain (dB)

32

NF (dB)

1.7

P1dB (dBm)

19.5

IP3 (dBm)

26

VSWR

1.7

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
