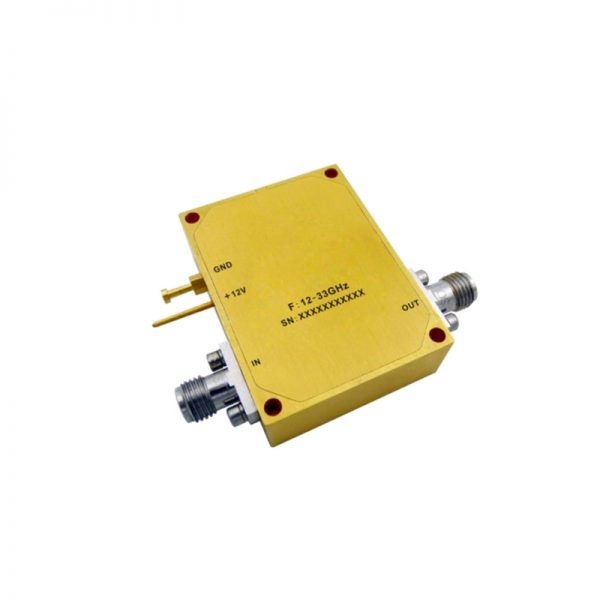

Ultra Wide Band Low Noise Amplifier From 12GHz to 33GHz With a Nominal 34dB Gain NF 2.5dB 2.92mm-Female Connectors

Ultra Wide Band Low Noise Amplifier From 12GHz to 33GHz With a Nominal 34dB Gain NF 2.5dB 2.92mm-Female Connectors

0 out of 5

• Gain: 32dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V

SKU: OLNA312003300B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

175-OLNA312003300B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

12

Max. Pass Band Frequency (GHz)

33

Gain (dB)

34

NF (dB)

2.5

P1dB (dBm)

23

IP3 (dBm)

29

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

380

Connection Type

2.92mm-Female
