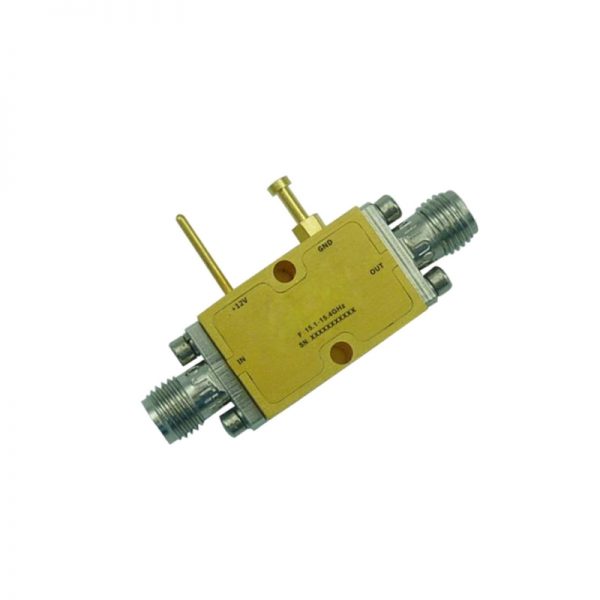

Ultra Wide Band Low Noise Amplifier From 15.1GHz to 15.4GHz With a Nominal 31dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 15.1GHz to 15.4GHz With a Nominal 31dB Gain NF 1.8dB SMA Connectors

0 out of 5

• Gain: 32dBtypical
• Noise Figure: 1.8dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched

SKU: OLNA215101540A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dBtypical
• Noise Figure: 1.8dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

016-OLNA215101540A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

15.1

Max. Pass Band Frequency (GHz)

15.4

Gain (dB)

31

NF (dB)

1.8

P1dB (dBm)

19

IP3 (dBm)

23

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
