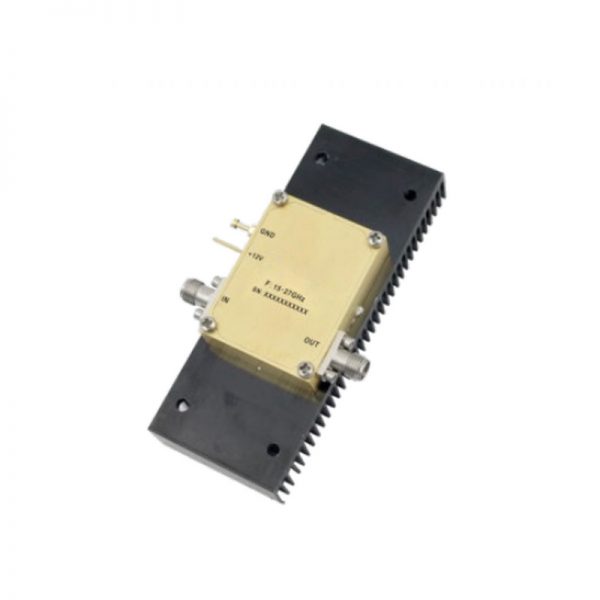

Ultra Wide Band Low Noise Amplifier From 15GHz to 27GHz With a Nominal 41dB Gain NF 2.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 15GHz to 27GHz With a Nominal 41dB Gain NF 2.5dB 2.92mm Connectors

0 out of 5

• Gain: 38dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +28dBm
• Supply Voltage: +12V @ 450mA
• 50 Ohm Matched Input / Output

SKU: OLNA315002700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 38dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +28dBm
• Supply Voltage: +12V @ 450mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

077-OLNA315002700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

15

Max. Pass Band Frequency (GHz)

27

Gain (dB)

41

NF (dB)

2.5

P1dB (dBm)

28

IP3 (dBm)

36

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

450

Connection Type

2.92mm
