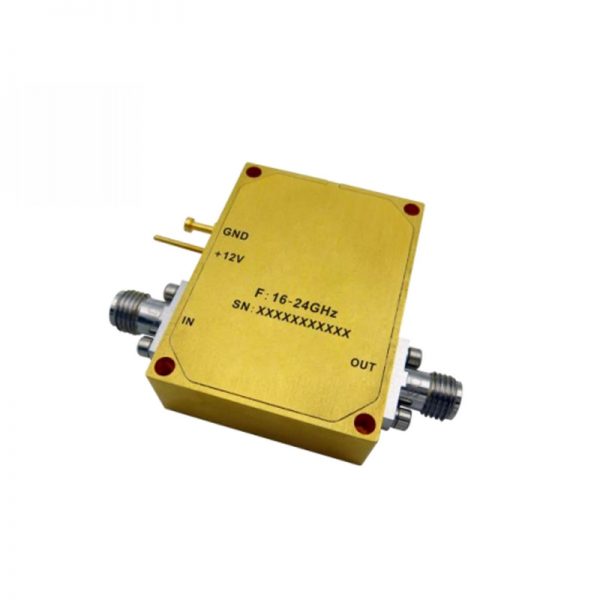

Ultra Wide Band Low Noise Amplifier From 16GHz to 24GHz With a Nominal 44dB Gain NF 1.8dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 24GHz With a Nominal 44dB Gain NF 1.8dB 2.92mm Connectors

0 out of 5

• Gain: 44dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +23.5dBm Typical
• Supply Voltage: +12V

SKU: OLNA116002400B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 44dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +23.5dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

170-OLNA116002400B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

24

Gain (dB)

44

NF (dB)

1.8

P1dB (dBm)

23.5

IP3 (dBm)

28.5

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

280

Connection Type

2.92mm
