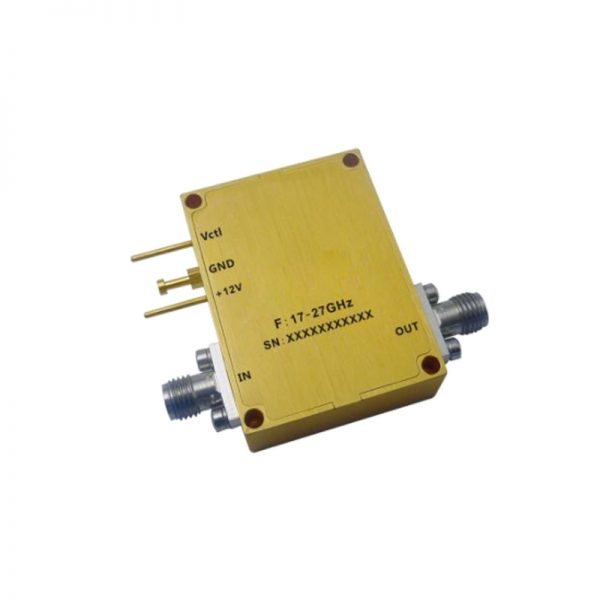

Ultra Wide Band Low Noise Amplifier From 17GHz to 27GHz With a Nominal 38dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 17GHz to 27GHz With a Nominal 38dB Gain NF 2.5dB SMA Connectors

• Gain: 38dB Typical
• Noise Figure: 2.2dB Typical
• Output P1dB : +23dBm Typical
• PSAT Output Power: 25dBm
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA217002700B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 38dB Typical
• Noise Figure: 2.2dB Typical
• Output P1dB : +23dBm Typical
• PSAT Output Power: 25dBm
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

208-OLNA217002700B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

17

Max. Pass Band Frequency (GHz)

27

Gain (dB)

38

NF (dB)

2.5

P1dB (dBm)

23

IP3 (dBm)

30

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
