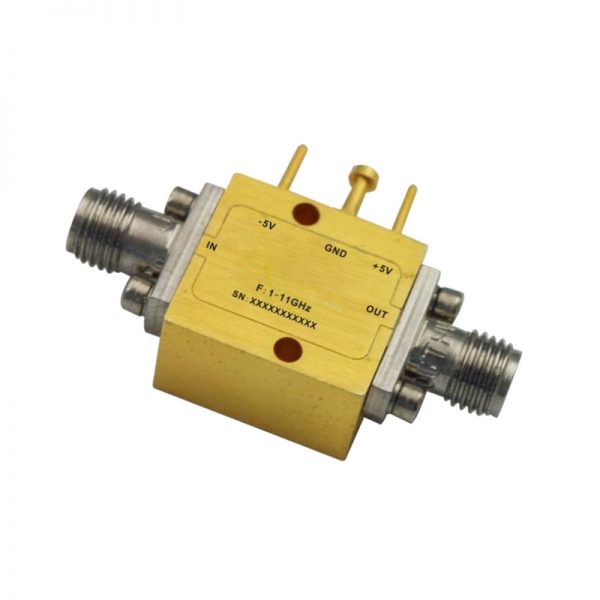

Ultra Wide Band Low Noise Amplifier From 1GHz to 11GHz With a Nominal 16dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 11GHz With a Nominal 16dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 17dB Typical
• Noise Figure: 1.6dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +5V @ 70mA
• 50 Ohm Matched

SKU: OLNA201001100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 17dB Typical
• Noise Figure: 1.6dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +5V @ 70mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

006-OLNA201001100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

11

Gain (dB)

16

NF (dB)

2

P1dB (dBm)

16

IP3 (dBm)

28

VSWR

1.6

"Voltage (VDC)"

5

"Current (mA)"

70

Connection Type

SMA
