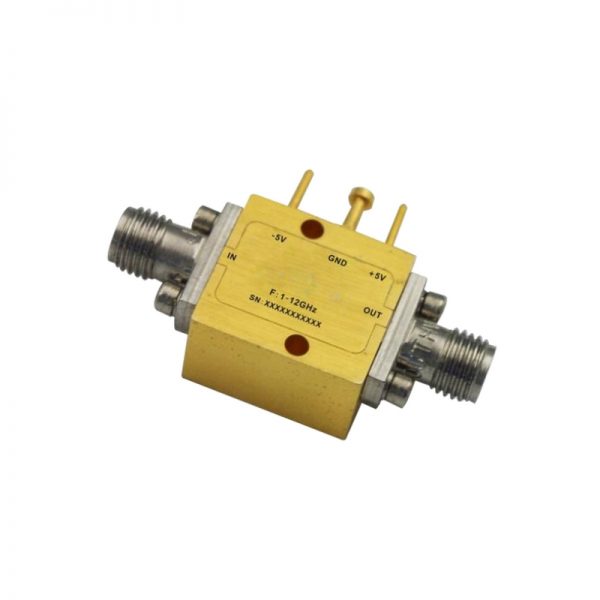

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 16dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 16dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 17dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +5V

SKU: OLNA201001200B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 17dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

011-OLNA201001200B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

12

Gain (dB)

16

NF (dB)

2.5

P1dB (dBm)

16

IP3 (dBm)

28

VSWR

1.5

"Voltage (VDC)"

5

"Current (mA)"

55

Connection Type

SMA
