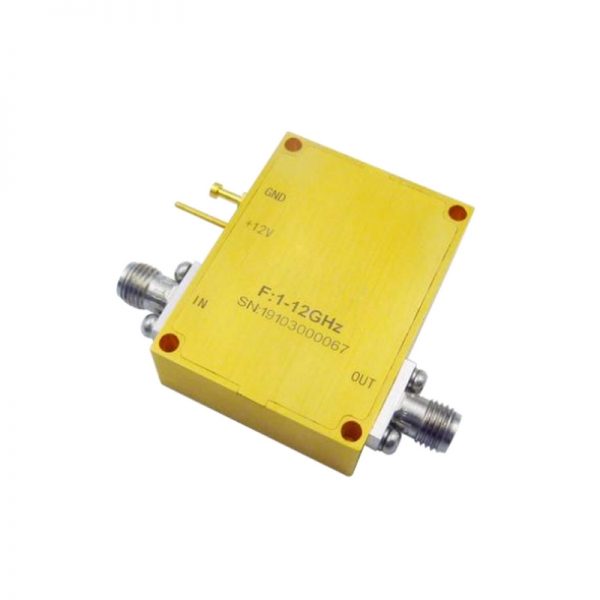

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 34dB Gain NF 2.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 34dB Gain NF 2.8dB SMA Connectors

0 out of 5

• Gain: 35 dB Typical
• Noise Figure: 1.8 dB Typical
• P1dB Output Power:+26dBm Typical
• Supply Voltage: +12 V
• 50 Ohm Matched

SKU: OLNA201001200A Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain: 35 dB Typical
• Noise Figure: 1.8 dB Typical
• P1dB Output Power:+26dBm Typical
• Supply Voltage: +12 V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

010-OLNA201001200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

12

Gain (dB)

34

NF (dB)

2.8

P1dB (dBm)

26

IP3 (dBm)

35

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

220

Connection Type

SMA
