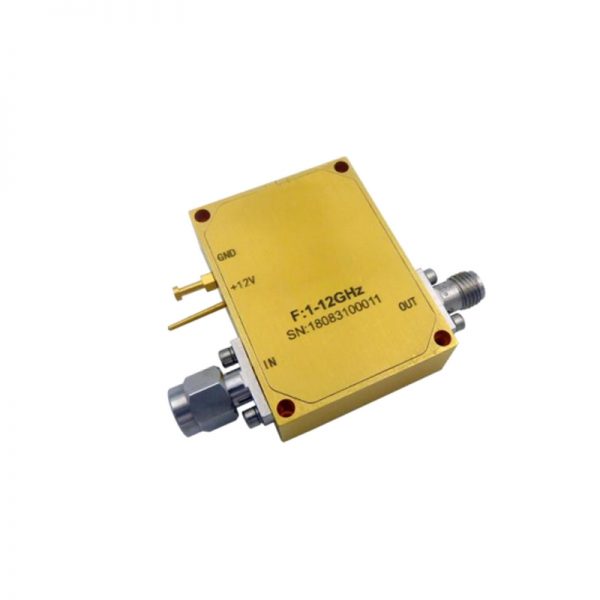

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 35dB Gain NF 1.8dB SMA-M/F Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 35dB Gain NF 1.8dB SMA-M/F Connectors

0 out of 5

• Gain: 36dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power:+26dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA201001200C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power:+26dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

179-OLNA201001200C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

12

Gain (dB)

35

NF (dB)

1.8

P1dB (dBm)

25

IP3 (dBm)

30

VSWR

1.7

"Voltage (VDC)"

12

"Current (mA)"

350

Connection Type

SMA-M/F
