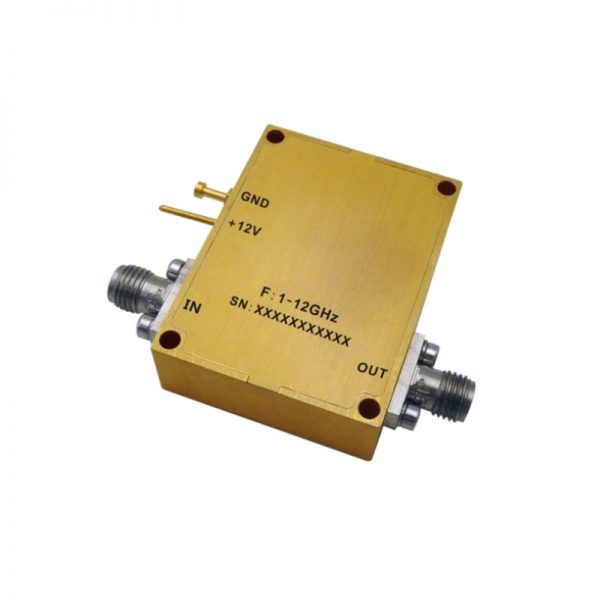

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 35dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 12GHz With a Nominal 35dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain:34dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +23dBm Typical
• Supply Voltage: +12V

SKU: OLNA201000800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:34dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +23dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

048-OLNA201000800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

12

Gain (dB)

35

NF (dB)

2

P1dB (dBm)

20

IP3 (dBm)

30

VSWR

3

"Voltage (VDC)"

12

"Current (mA)"

280

Connection Type

SMA
