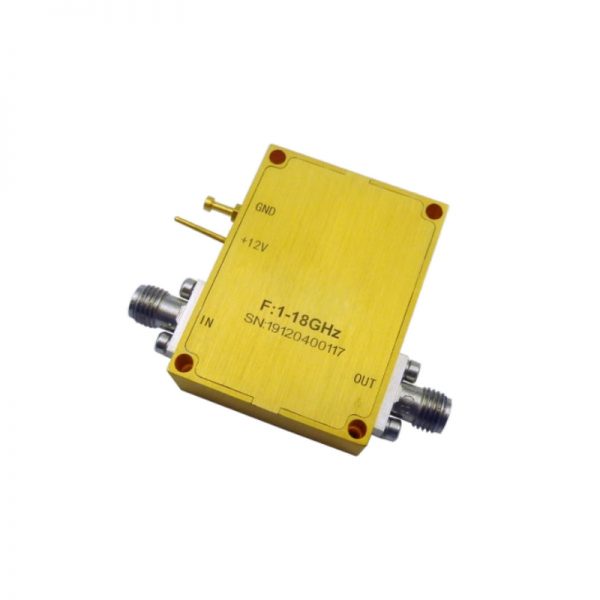

Ultra Wide Band Low Noise Amplifier From 1GHz to 18GHz With a Nominal 27dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 18GHz With a Nominal 27dB Gain NF 2.5dB SMA Connectors

• Gain: 29dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V @130mA
• 50 Ohm Matched

SKU: OLNA401001800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 29dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V @130mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

023-OLNA401001800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

27

NF (dB)

2.5

P1dB (dBm)

17

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
