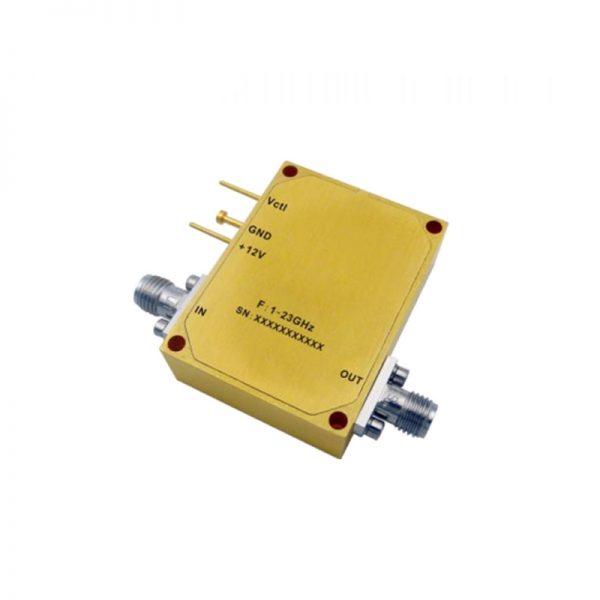

Ultra Wide Band Low Noise Amplifier From 1GHz to 23GHz With a Nominal 33dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 23GHz With a Nominal 33dB Gain NF 2.5dB SMA Connectors

• Gain: 33dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +20dBm Typical
• PSAT Output Power: 22dBm
• Supply Voltage: +12V

SKU: OLNA301002300B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 33dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +20dBm Typical
• PSAT Output Power: 22dBm
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

177-OLNA301002300B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

23

Gain (dB)

33

NF (dB)

2.5

P1dB (dBm)

20

IP3 (dBm)

28

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

180

Connection Type

SMA
