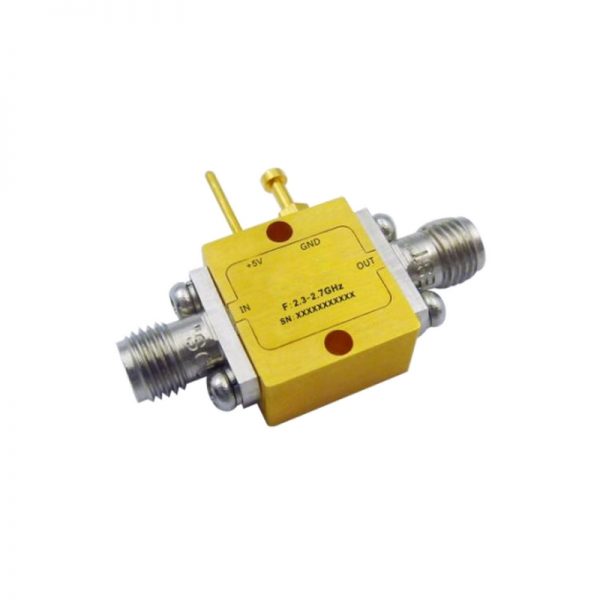

Ultra Wide Band Low Noise Amplifier From 2.3GHz to 2.7GHz With a Nominal 19dB Gain NF 0.75dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2.3GHz to 2.7GHz With a Nominal 19dB Gain NF 0.75dB SMA Connectors

0 out of 5

• Functional Bandwidth : 0.5-4GHz
• Gain: 21dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +5V

SKU: OLNA102300270A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Functional Bandwidth : 0.5-4GHz
• Gain: 21dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

091-OLNA102300270A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2.3

Max. Pass Band Frequency (GHz)

2.7

Gain (dB)

19

NF (dB)

0.75

P1dB (dBm)

16.5

IP3 (dBm)

29.5

VSWR

1.5

"Voltage (VDC)"

5

"Current (mA)"

59

Connection Type

SMA
