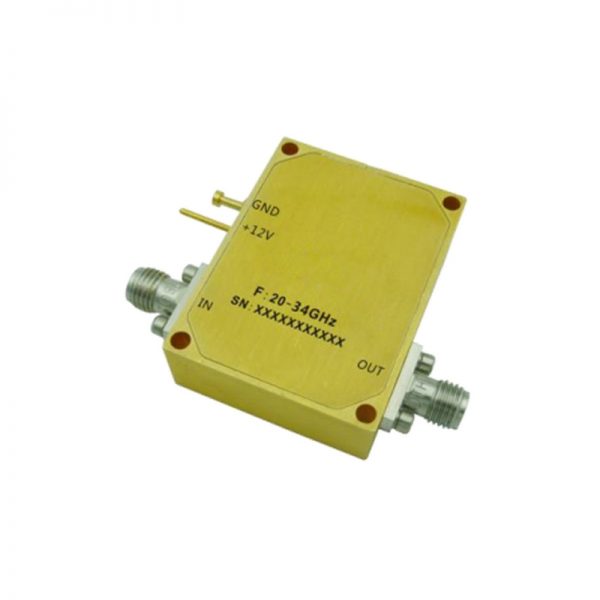

Ultra Wide Band Low Noise Amplifier From 20GHz to 34GHz With a Nominal 45dB Gain NF 2dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 20GHz to 34GHz With a Nominal 45dB Gain NF 2dB 2.92mm Connectors

0 out of 5

• Gain: 45dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V

SKU: OLNA220003400A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

171-OLNA220003400A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

20

Max. Pass Band Frequency (GHz)

34

Gain (dB)

45

NF (dB)

2

P1dB (dBm)

18

IP3 (dBm)

25

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

2.92mm
