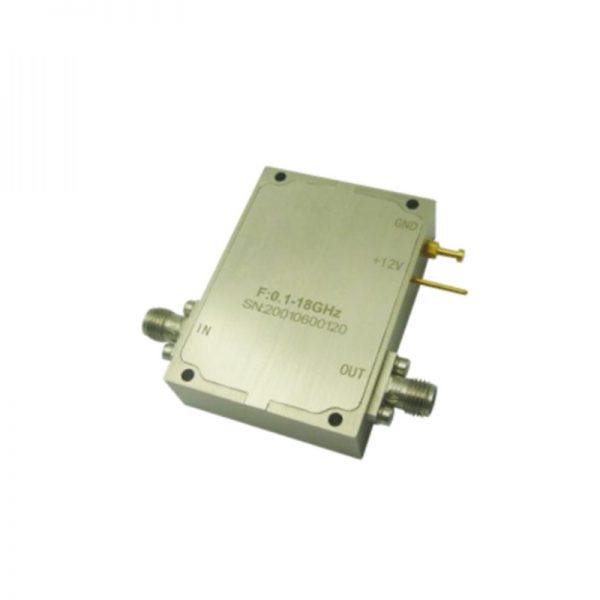

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 43dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 43dB Gain NF 3dB SMA Connectors

0 out of 5

• Gain:43dB Typical
• Noise Figure:2.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched Input / Output
• Size:1.379” x1.891” x0.473”

SKU: OLNA400101800B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:43dB Typical
• Noise Figure:2.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched Input / Output
• Size:1.379” x1.891” x0.473”



Data Sheet ( Download Datasheet PDF )

150-OLNA400101800B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

43

NF (dB)

3

P1dB (dBm)

16

IP3 (dBm)

26

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
