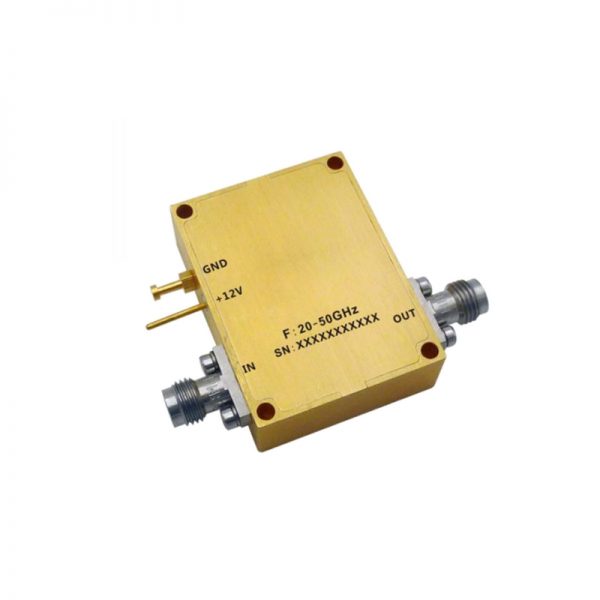

Ultra Wide Band Low Noise Amplifier From 20GHz to 50GHz With a Nominal 32dB Gain NF 2.5dB 2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 20GHz to 50GHz With a Nominal 32dB Gain NF 2.5dB 2.4mm Connectors

• Gain: 37dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dB m Typical
• Supply Voltage: +12V

SKU: OLNA320005000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 37dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dB m Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

216-OLNA320005000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

20

Max. Pass Band Frequency (GHz)

50

Gain (dB)

32

NF (dB)

2.5

P1dB (dBm)

15

IP3 (dBm)

25

VSWR

2.8

"Voltage (VDC)"

12

"Current (mA)"

250

Connection Type

2.4mm
