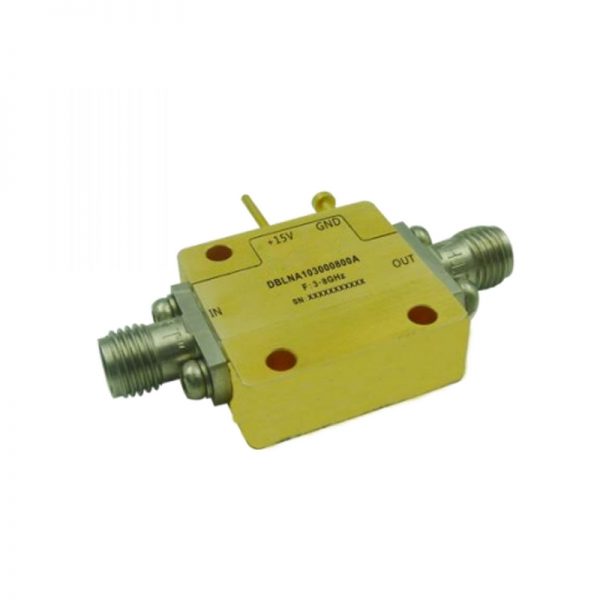

Ultra Wide Band Low Noise Amplifier From 3GHz to 8GHz With a Nominal 56dB Gain NF 0.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 3GHz to 8GHz With a Nominal 56dB Gain NF 0.8dB SMA Connectors

0 out of 5

• Gain: 58dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +18dBmTypical
• Supply Voltage: +15V

SKU: OLNA103000800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 58dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +18dBmTypical
• Supply Voltage: +15V



Data Sheet ( Download Datasheet PDF )

195-OLNA103000800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

3

Max. Pass Band Frequency (GHz)

8

Gain (dB)

56

NF (dB)

0.8

P1dB (dBm)

16

IP3 (dBm)

26

VSWR

2.5

"Voltage (VDC)"

15

"Current (mA)"

160

Connection Type

SMA
