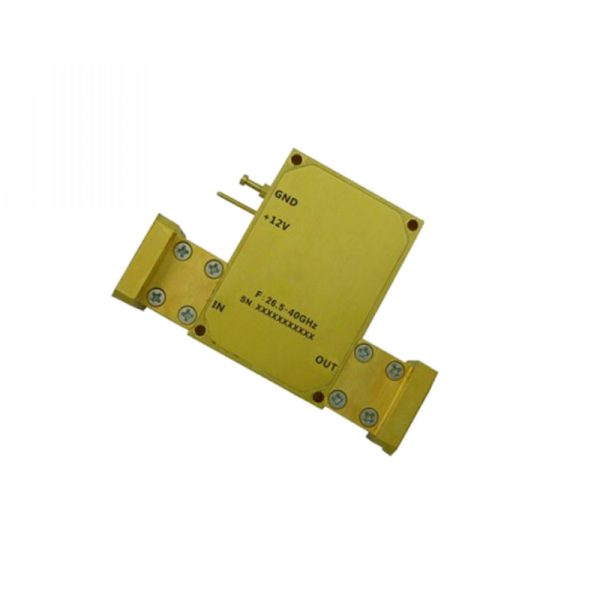

Ultra Wide Band Low Noise Amplifier From 26.5GHz to 40GHz With a Nominal 40dB Gain NF 4.5dB WR28 Connectors

Ultra Wide Band Low Noise Amplifier From 26.5GHz to 40GHz With a Nominal 40dB Gain NF 4.5dB WR28 Connectors

0 out of 5

• Gain: 48dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +21dB m Typical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA326504000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 48dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +21dB m Typical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

168-OLNA326504000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

26.5

Max. Pass Band Frequency (GHz)

40

Gain (dB)

40

NF (dB)

4.5

P1dB (dBm)

16

IP3 (dBm)

23.5

VSWR

2.2

"Voltage (VDC)"

15

"Current (mA)"

420

Connection Type

WR28
