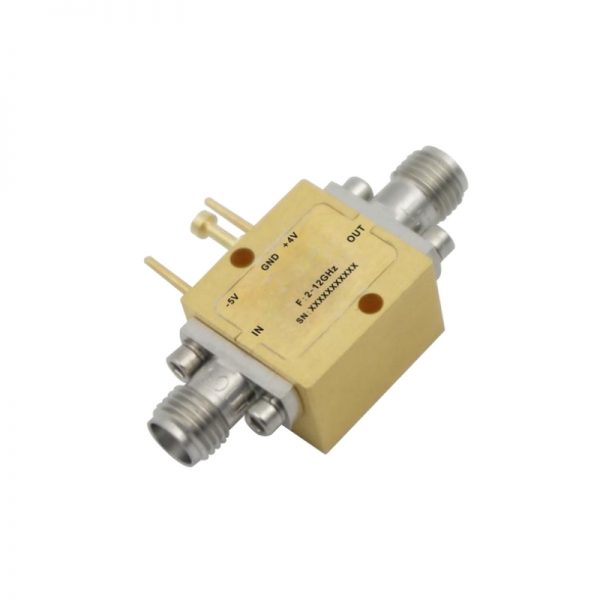

Ultra Wide Band Low Noise Amplifier From 2GHz to 12GHz With a Nominal 15dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 12GHz With a Nominal 15dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain:15dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V @45mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.41”

SKU: OLNA202001200A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:15dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V @45mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.41”



Data Sheet ( Download Datasheet PDF )

012-OLNA202001200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

12

Gain (dB)

15

NF (dB)

2.5

P1dB (dBm)

13

IP3 (dBm)

25

VSWR

1.5

"Voltage (VDC)"

4

"Current (mA)"

45

Connection Type

SMA
