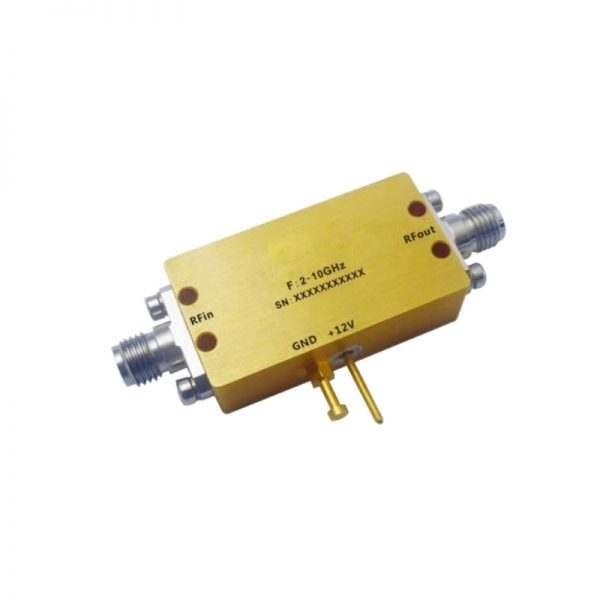

Ultra Wide Band Low Noise Amplifier From 2GHz to 12GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 12GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

0 out of 5

Gain: 32dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dBm Typical

SKU: OLNA202001000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

Gain: 32dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +15dBm Typical



Data Sheet ( Download Datasheet PDF )

003-OLNA202001000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

12

Gain (dB)

32

NF (dB)

2.5

P1dB (dBm)

15

IP3 (dBm)

27

VSWR

2.5

"Voltage (VDC)"

15

"Current (mA)"

120

Connection Type

SMA
