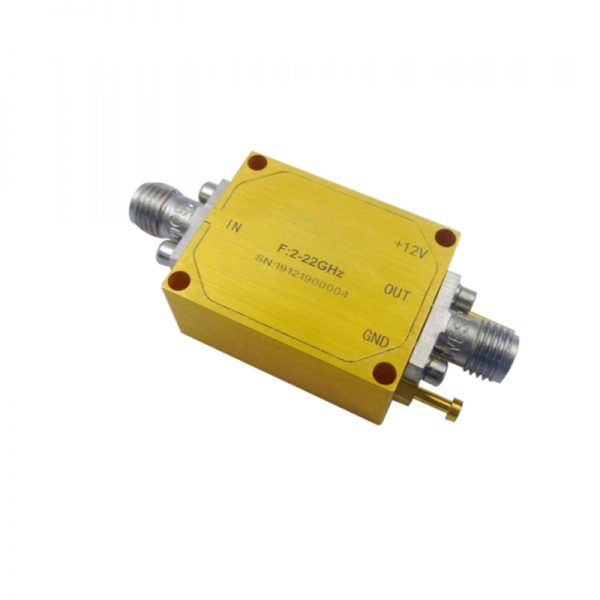

Ultra Wide Band Low Noise Amplifier From 2GHz to 22GHz With a Nominal 29dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 22GHz With a Nominal 29dB Gain NF 3dB SMA Connectors

0 out of 5

• Gain: 29dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 260mA
• 50 Ohm Matched Input / Output
• Size: 1.02” x 0.79” x0.47”

SKU: OLNA502002200A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 29dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 260mA
• 50 Ohm Matched Input / Output
• Size: 1.02” x 0.79” x0.47”



Data Sheet ( Download Datasheet PDF )

118-OLNA502002200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

22

Gain (dB)

29

NF (dB)

3

P1dB (dBm)

22

IP3 (dBm)

32

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

260

Connection Type

SMA
