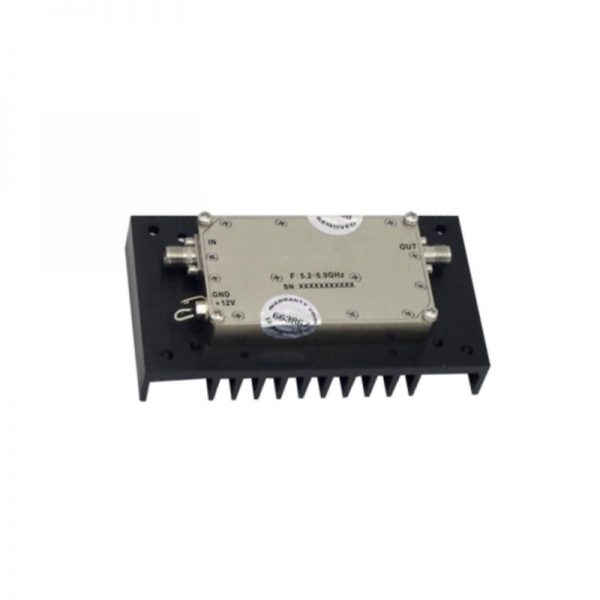

Ultra Wide Band Low Noise Amplifier From 5.2GHz to 5.9GHz With a Nominal 32dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 5.2GHz to 5.9GHz With a Nominal 32dB Gain NF 1.5dB SMA Connectors

0 out of 5

• Gain: 32dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +24dBm Typical
• Supply Voltage: +12V @ 290mA
• 50 Ohm Matched Input / Output
• Size: 2.38×1.39” x 0.4”

SKU: OLNA205200590A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +24dBm Typical
• Supply Voltage: +12V @ 290mA
• 50 Ohm Matched Input / Output
• Size: 2.38×1.39” x 0.4”



Data Sheet ( Download Datasheet PDF )

036-OLNA205200590A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

5.2

Max. Pass Band Frequency (GHz)

5.9

Gain (dB)

32

NF (dB)

1.5

P1dB (dBm)

23

IP3 (dBm)

35

VSWR

1.9

"Voltage (VDC)"

12

"Current (mA)"

270

Connection Type

SMA
