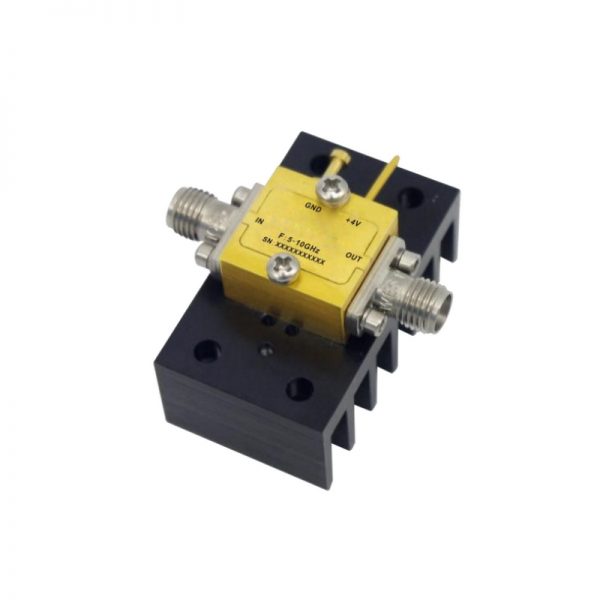

Ultra Wide Band Low Noise Amplifier From 5GHz to 10GHz With a Nominal 20dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 5GHz to 10GHz With a Nominal 20dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +4V @ 80mA
• 50 Ohm Matched

SKU: OLNA205001000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +4V @ 80mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

004-OLNA205001000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

5

Max. Pass Band Frequency (GHz)

10

Gain (dB)

20

NF (dB)

2

P1dB (dBm)

16.5

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

4

"Current (mA)"

80

Connection Type

SMA
