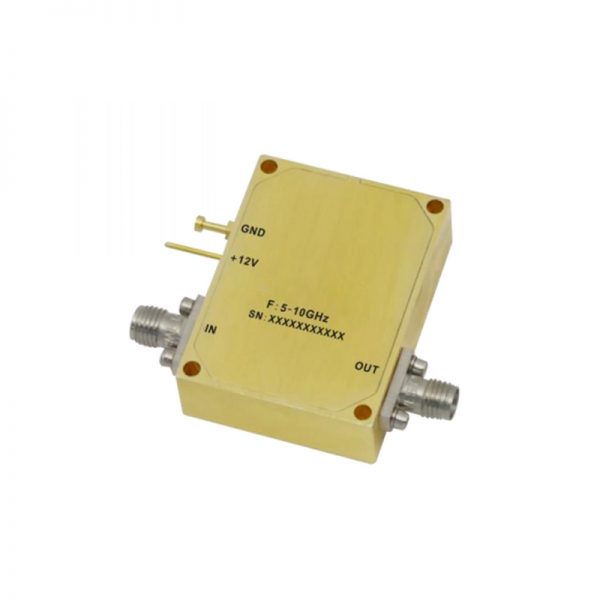

Ultra Wide Band Low Noise Amplifier From 5GHz to 10GHz With a Nominal 38dB Gain NF 2.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 5GHz to 10GHz With a Nominal 38dB Gain NF 2.3dB SMA Connectors

0 out of 5

• Gain:38dB Typical
• Functional Bandwidth: 4 GHz to 11 GHz
• NoiseFigure:2.3dBTypical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @280mA
• 50 Ohm Matched Input / Output

SKU: OLNA205001000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:38dB Typical
• Functional Bandwidth: 4 GHz to 11 GHz
• NoiseFigure:2.3dBTypical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @280mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

145-OLNA205001000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

5

Max. Pass Band Frequency (GHz)

10

Gain (dB)

38

NF (dB)

2.3

P1dB (dBm)

26

IP3 (dBm)

33

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

280

Connection Type

SMA
