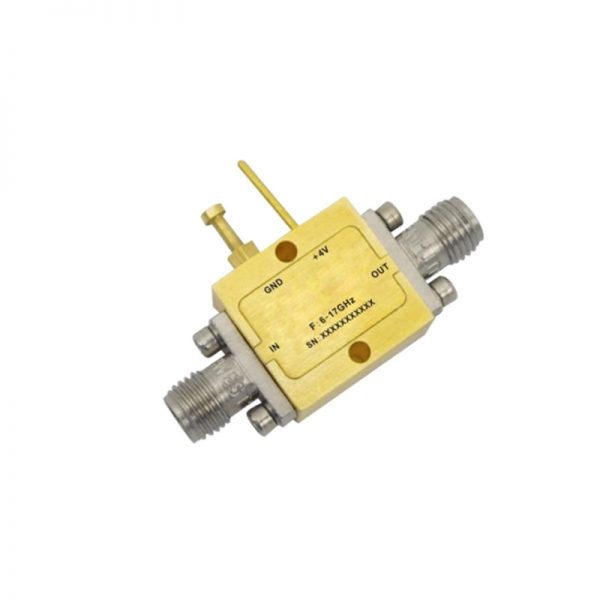

Ultra Wide Band Low Noise Amplifier From 6GHz to 17GHz With a Nominal 19dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 17GHz With a Nominal 19dB Gain NF 2.5dB SMA Connectors

• Gain:19dB Typical
• Noise Figure: 1.7dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V @90mA
• 50 Ohm Matched

SKU: OLNA206001700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:19dB Typical
• Noise Figure: 1.7dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V @90mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

020-OLNA206001700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

17

Gain (dB)

19

NF (dB)

2.5

P1dB (dBm)

16

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

4

"Current (mA)"

90

Connection Type

SMA
