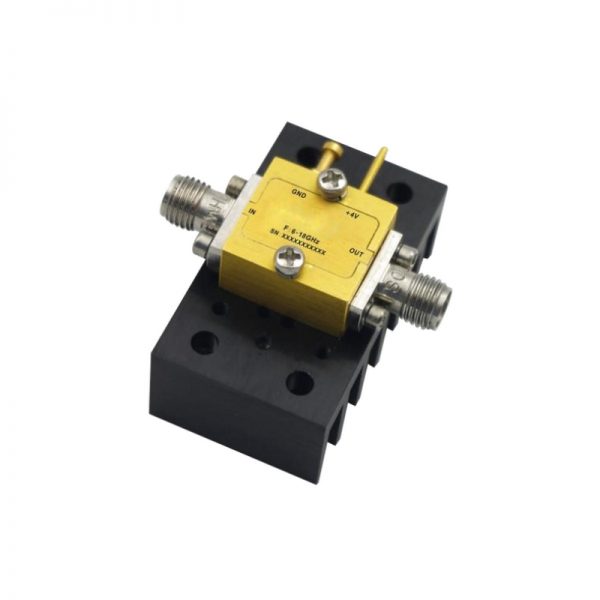

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 20dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 20dB Gain NF 1.8dB SMA Connectors

0 out of 5

• Gain:19dB Typical
• Noise Figure:1.8dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V

SKU: OLNA206001800H Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:19dB Typical
• Noise Figure:1.8dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V



Data Sheet ( Download Datasheet PDF )

038-OLNA206001800H



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

20

NF (dB)

1.8

P1dB (dBm)

16

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

4

"Current (mA)"

90

Connection Type

SMA
