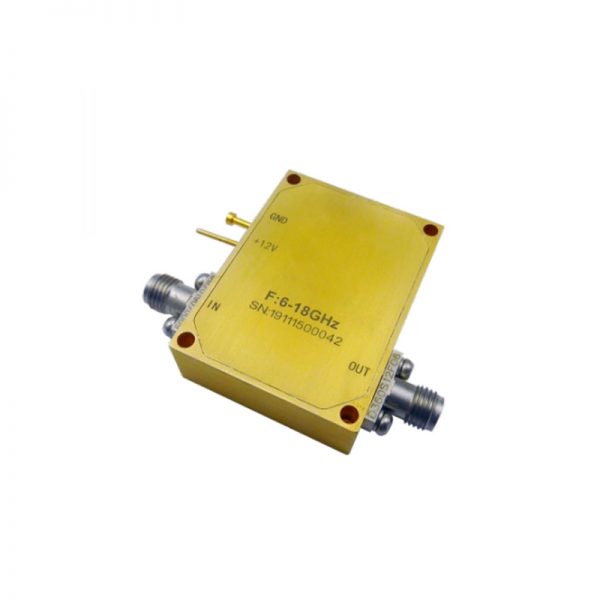

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 44dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 44dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 35 dB Typical
• Noise Figure: 1.6dB Typical
• P1dB Output Power: +27dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output

SKU: OLNA206001800C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35 dB Typical
• Noise Figure: 1.6dB Typical
• P1dB Output Power: +27dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

163-OLNA206001800C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

44

NF (dB)

2

P1dB (dBm)

27

IP3 (dBm)

34

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

620

Connection Type

SMA
